SD40 Series Patio Sliding Doors

SD40 Series Patio Sliding Doors

SD40 Patio Sliding Door system,
consisting of 67mm outer frame, with
two configurations and interlocking
panels. Channel gasket to suit glass
thickness, as supplied by Sunsai Glass,
and installed all in accordance with
manufacturer's recommendations and
AAAMSA regulations.
Powder coating colour and finish in
applicable Interpon series as per
Architect's approval.
RFQ - enquire now
Category:

Description

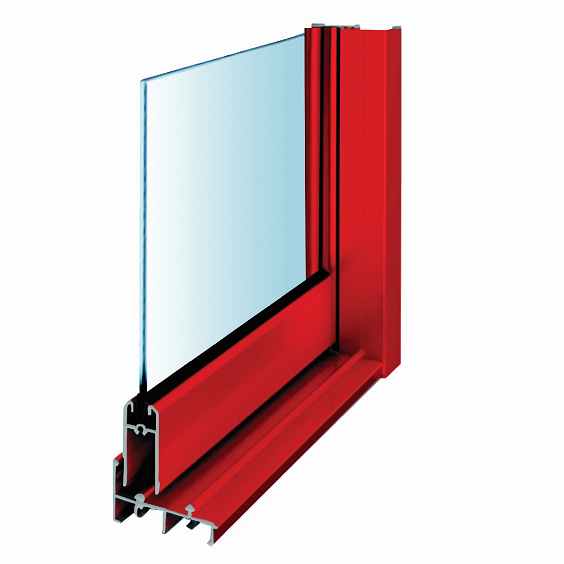

SD40 Patio Sliding Door System
Aluminium sliding door system designed for smooth operation, durability, and low
maintenance.
Easy to install with minimal maintenance requirements.
Available with casement sidelight options to suit various layouts.
Can accommodate fly screens where required.
Various locking options available for enhanced security.
Designed for 2-panel or 4-panel configurations.
Panel sizes up to 1200mm x 2100mm (w x h).
Frame and sash extruded from 6063 T5/T6 aluminium alloy with structural wall
thickness of 1.2 – 1.6mm.
Panel profiles have a depth of 25mm with interlocker profiles available in
standard and heavy-duty variations.
Outer frames have a depth of 67mm.
Suitable for single glazing applications.
Accommodates 5mm toughened and 6.38mm laminated safety glass.
Download PDF
