SD50HD Series Sliding Doors

SD50HD Series Sliding Doors

SD50HD Sliding Door system, consisting
of 118mm-300mm outer frame, with
two-multiple track configurations and
applicable interlocker profiles suitable
for wind load criteria. Glazing bead and
gasket to suit glass thickness, as supplied
by Sunsai Glass, and installed all in
accordance with manufacturer's
recommendations and AAAMSA
regulations.
RFQ - enquire now
Category:

Description

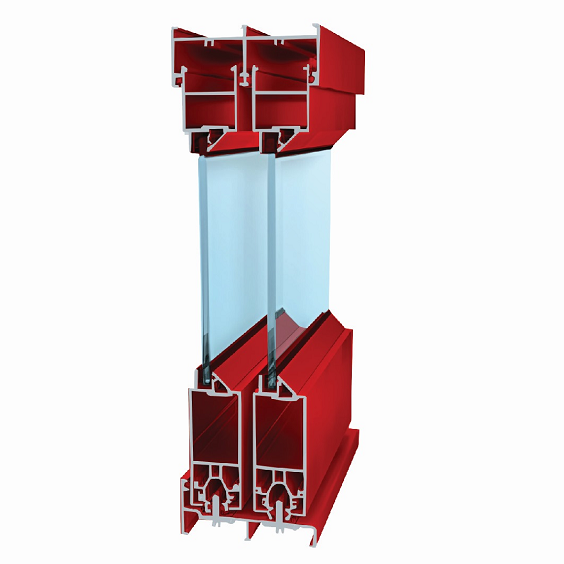

SD50HD Sliding Door System
High-performance aluminium sliding door system designed for high-traffic applications
and expansive views.
Engineered for durability and smooth operation in demanding environments.
Large panel design maximises visible area and natural light.
Versatile wheel options available to suit panel weights and usage.
Can accommodate fly screens or adjustable shutters.
Various locking options available for enhanced security.
Single track up to 5-track configurations.
Panel sizes up to 1500mm x 3000mm (w x h).
Frame and sash extruded from 6063 T5/T6 aluminium alloy with structural wall
thickness of 1.6mm – 5.0mm.
Panel profiles have a depth of 44.5mm with interlocker and meeting stile profiles
available in standard and heavy-duty variations.
Outer frames have depths ranging from 118mm – 300mm.
Suitable for both single and double glazing applications.
Accommodates glass thickness options from 4mm – 26mm.
Download PDF
